The tire sidewall cutter is a key piece of equipment used in waste tire recycling to remove steel bead wires before shredding. As a tire sidewall cutting machine, it separates the sidewall and bead from the tire, improving recycling efficiency, reducing equipment wear, and increasing the value of recovered materials.
Complete Tire Recycling Equipment Manufacturer

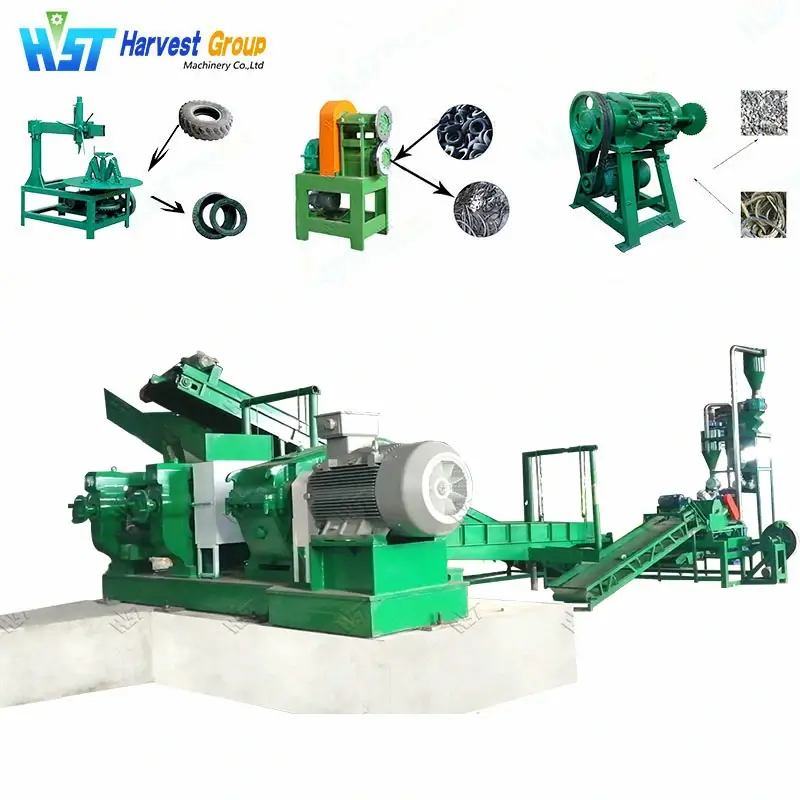

The tire sidewall cutter, also known as a tyre sidewall cutter or sidewall cutter, is the first step in a complete tire recycling line . After sidewall and bead removal, the processed tires can be further handled by:
• tire strip cutter
• tire block cutter
• tire shredder machine
• rubber granulator and grinding system
This workflow ensures smooth processing, protects shredding blades, and improves the overall efficiency of the tire recycling plant.
cut and remove tire sidewall and bead efficiently

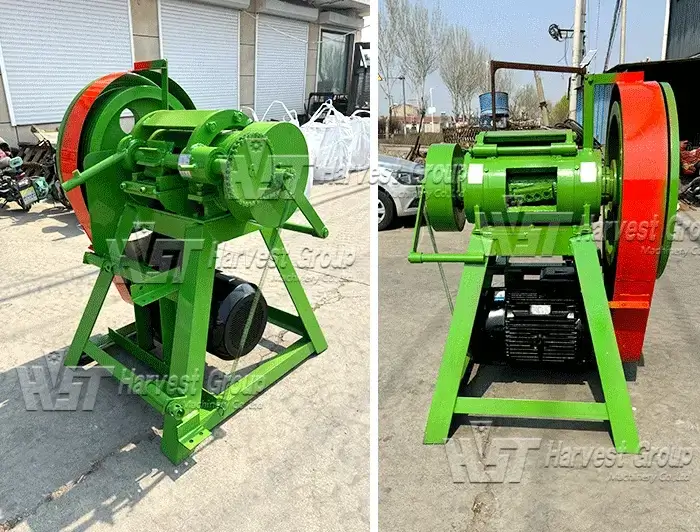

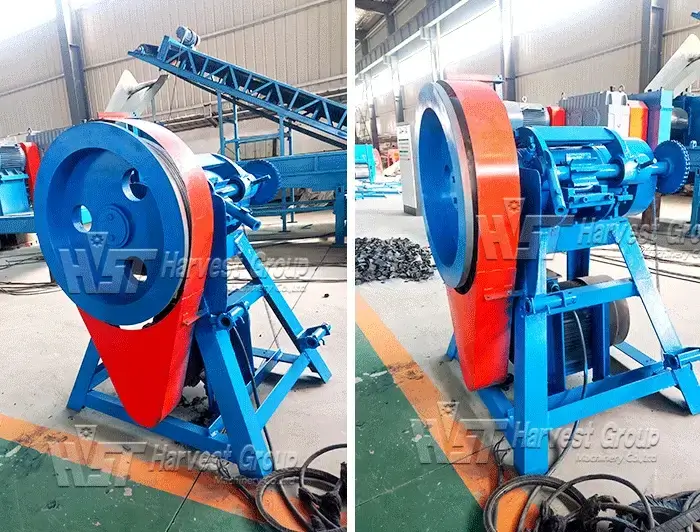

The tire sidewall cutter, also known as a tyre sidewall cutter or tire side wall cutter, is designed to cut off the sidewall and separate the steel bead from scrap tires. This tire sidewall cutting machine is suitable for car tires, truck tires, and light OTR tires, making it an essential step before shredding.
| Model | Standard | Heavy Duty |
| Tire Size (mm) | 650–1200 | 650–1400 |
| Capacity (tires/h) | 40–60 | 60–80 |
| Motor Power (kW) | 4 + 0.75 | 5.5 + 1.1 |
| Machine Size (m) | 1.8 × 1.3 × 1.6 | 2.0 × 1.5 × 1.7 |
| Weight (kg) | 650 | 800 |

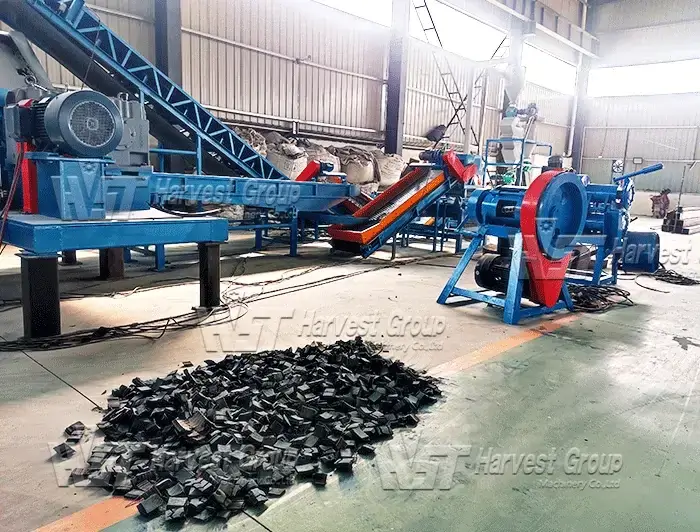

This sidewall cutter machine can be used as a standalone unit or integrated into a complete tire recycling machine system.
How the tire sidewall cutter works:
The tire sidewall cutter, also known as a tyre sidewall cutter or tire side wall cutter, uses a rotating platform and cutting blade system to separate the sidewall and bead from the tire before shredding.
1. Tire loading: place the waste tire on the rotating platform
2. Tire clamping: secure the tire using the clamping device
3. Cutting process: the blade gradually cuts into the sidewall while the platform rotates
4. Separation: the sidewall and bead are cleanly removed
This process protects downstream equipment such as tire shredder machine and improves overall recycling efficiency.
Why choose a tire sidewall cutting machine in recycling line:
• High efficiency: processes up to 40–60 tires per hour
• Protects shredder blades: reduces wear caused by steel bead wires
• Improves processing flow: prepares tires for strip cutting and shredding
• Easy operation: simple structure, suitable for one-person use
• Durable blade: high-hardness alloy cutter ensures long service life
This sidewall cutter machine is widely used as the first step in tire recycling plants.
Why choose a tire sidewall cutting machine in recycling line:
• High efficiency: processes up to 40–60 tires per hour
• Protects shredder blades: reduces wear caused by steel bead wires
• Improves processing flow: prepares tires for strip cutting and shredding
• Easy operation: simple structure, suitable for one-person use
• Durable blade: high-hardness alloy cutter ensures long service life
This sidewall cutter machine is widely used as the first step in tire recycling plants.
The tire sidewall cutter is suitable for processing different types of waste tires, including:
• car tires
• truck tires (650–1200mm)
• bus tires
• light OTR tires
It is commonly used in waste tire recycling lines to prepare tires for cutting, shredding, and rubber powder production.
After processing with a tire sidewall cutting machine, the tire is separated into:
• Tire sidewalls with bead: suitable for further steel wire separation
• Tire body: ready for strip cutting, shredding, and granulation
This improves both the efficiency and profitability of the tire recycling process.
Looking for a reliable tire cutter machine for sale? Contact us to get price, video, and complete tire recycling solutions.
Q: What is a tire sidewall cutter?
A: A tire sidewall cutter is used to cut and remove the sidewall and bead from waste tires before shredding, improving processing efficiency.
Q: What tire sizes can be processed?
A: Standard models handle tires from 650–1200mm, suitable for car and truck tires.
Q: Why use a sidewall cutter before shredding?
A: Removing the sidewall reduces equipment wear and improves the efficiency of downstream machines.
Q: What is the capacity of the machine?
A: Typically 40–60 tires per hour depending on the model.
As a professional manufacturer of tire recycling equipment, we provide high-quality tire sidewall cutter machines with stable performance and long service life.
