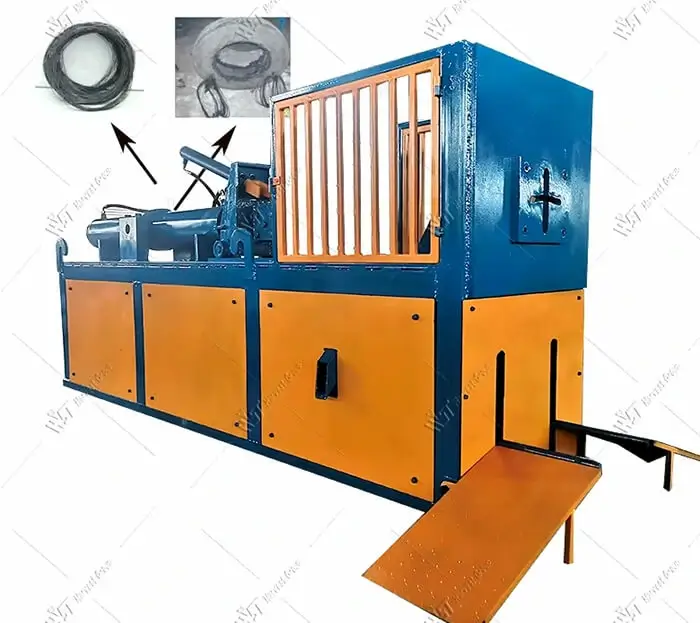

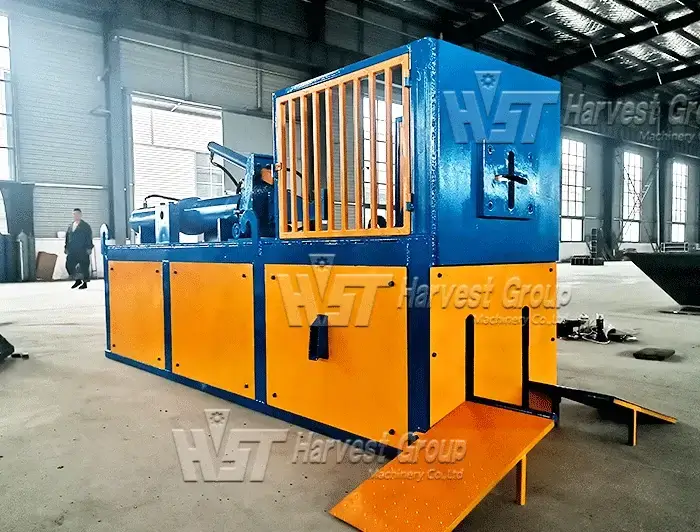

The tire debeader machine is a key piece of equipment used in waste tire recycling to remove steel bead wires before shredding. By separating steel from rubber at the beginning of the process, it improves recycling efficiency, reduces equipment wear, and increases the value of recovered materials.
Complete Tire Recycling Equipment Manufacturer

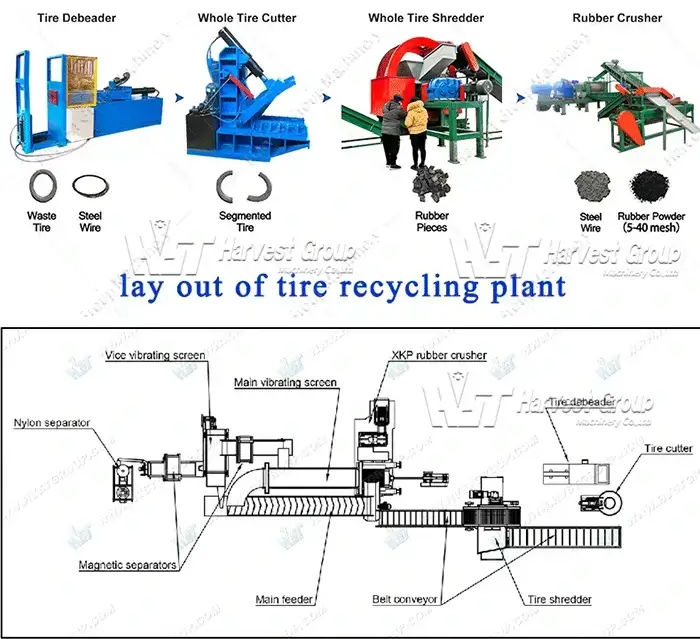

The tire debeader machine is the first and most critical step in a complete tire recycling line . After bead wire removal, the processed tires can be further handled by:
• tire cutting machine
• tire shredder machine
• rubber granulator and grinding system
This workflow ensures smooth processing, protects shredding blades, and improves the overall efficiency of the recycling plant.
draw out steel wire from tire circle
Draw out the steel wires from the tire bead. Remove the wires from tire bead. Especially suitable for OTR tires and truck tires.
| Model No. | Single-1200 | Double-TD1200 |
| Feed size of tire(mm) | ≦φ1200 | ≦φ1200 |
| Capacity(tires/h) | 40 | 80 |
| Power(KW) | 7.5 | 18.5 |
| Overall dimensions(m) | 4.1*1.3*1.75m | 4.5*1.5*1.8m |
| Equipment weight(T) | 2.8 | 3.5 |
How the hydraulic tire debeader works:
The tire debeader machine uses a hydraulic system to pull out the steel bead wire from the tire sidewall before shredding. The process is stable, efficient, and suitable for heavy-duty truck tires.
1. Tire loading: place the waste tire into the working position
2. Hook insertion: the hydraulic hook enters the bead area
3. Wire pulling: the system applies strong force to extract the steel ring
4. Separation: rubber and steel are separated smoothly
This process protects downstream equipment such as tire shredder and improves overall recycling efficiency.
Why choose a tire debeader machine in recycling line:
• High pulling force: efficiently removes thick steel bead wires from truck tires
• Protects shredder blades: reduces wear and maintenance costs
• Improves rubber purity: cleaner output material for further processing
• High efficiency: up to 30–80 tires per hour depending on model
• Easy operation: hydraulic system with simple control
The tyre debeader machine is widely used as the first step in tire recycling plants.
The tire debeader machine is suitable for processing different types of waste tires, including:
• truck tires (900–1200mm)
• bus tires
• OTR tires (with heavy-duty models)
• industrial waste tires
It is commonly used in waste tire recycling lines to prepare tires for shredding, cutting, and rubber powder production.
After processing with a tire bead removal machine, two valuable outputs are obtained:
• Steel bead wire: high-strength steel ring with high recycling value
• Rubber tire body: ready for shredding and granulation
This improves both the efficiency and profitability of the tire recycling process.
Q: What is a tire debeader machine?
A: A tire debeader machine is used to remove steel bead wires from waste tires before shredding, improving recycling efficiency and protecting downstream equipment.
Q: What tire sizes can be processed?
A: Standard models handle 900–1200mm truck tires, while heavy-duty models support large OTR tires up to 4000mm.
Q: Why is debeading necessary before shredding?
A: Removing bead wire reduces blade wear, prevents equipment damage, and improves rubber purity.
Q: What is the capacity of the tire debeader machine?
A: Depending on the model, capacity ranges from 20 to 80 tires per hour.
